The 2022 Competition 5R110w Transmission for 6.0 Powerstroke 2003-2007 and 6.4 Powerstroke 2008-2010 is warrantied to 600 RWHP, and includes the following:
- Goerend triple disc billet converter with billet stator (Goerend 5R110 Triple Disc Converter)
- TCS Billet Input Shaft (5R110 Billet Input Shaft)
- Ford Billet Pump (Warren Diesel Billet Pump)
- Welded Coast Clutch Drum (Welded Coast Clutch Drum)
- Raybestos GBZ stage 1 clutches used in the following;
- 5-pack Overdrive (5-Pack Overdrive with piston (5R110w)
- 3-pack Coast Clutch
- 5-pack Intermediate
- 6-pack Xtreme Direct w/ 1-piece bushing (5R110w Xtreme Direct Drum)
- 5-pack Forward
- 6-pack Low/Reverse
- Machined center section (Machined Center Support 5R110w)
- Performance Valve Body ( Performance Valve Body 5R110w)
- Sonnax Teflon Manuel Valve (Sonnax Manuel Valve (36940-22)
- Sonnax Plug Kit (Pressure Switch O-Ringed End Plug Kit (36940-17K)
- Sonnax Retaining Ring (Sonnax Low/Reverse Retaining Ring 5R110w)
- Updated rear hub
- Akzo Noble single stage Urethane paint
- Ford valve body wiring harness (5R110w Valve Body Wiring Harness)
- Ford speed sensors
- Goerend and Ford pans available
The 2022 Competition 5R110w for the 6.0 Powerstroke and 6.4 Powerstroke is designed for recreational
and commercial use. Using parts from the most reliable manufactures in America this transmission
is capable for street, daily driving, burnouts, racing, towing, and road trips. Rated at 600hp it is most suitable
for a trucks with upgraded injectors, stage 1-2 turbos and performance tunes.The most common application
for this model is recreational use. Generally the Competition 5R110w is suited with a Goerend FBF (1800)
stall converter. If you need a different stall speed, contact us and we can customize your order.
This product includes a 5-year combined warranty. This includes a 1-year unlimited warranty and a 4-year labor
warranty. Warranty limitations are as the following:
- 1-year Unlimited covers cost of transmission
- 4-year Labor covers cost of labor
- Shipping is not part of the warranty
- Warranty does not cover r&r
- Warranty’s get our newest hardware installed
We offer a free pack of tunes for the 2003-2007 model of this transmission. Contact us through e-mail or phone and
request free tunes for your newly purchased transmission.
Transmissions are shipped through freight companies. When ordering take into consideration if you
have a suitable location to unload (commercial locations are preferred.) If necessary request a lift gate.
If you are near to our location, a local service might be more economical for you. We offer local pick-ups
and free installs with a purchase of one of our transmissions.
Customers will have 30 days to return core or will be charged an $500.00 core charge. If you
select to return core simply place your core transmission on the pallet you received the new transmission
on and contact us through e-mail or phone call, and we will pick the core transmission up with a freight company.
If you select to pay the core charge simply select pay core charge on the customization bar.
Our products include several manufactures including, Ford, Raybestos, Alto, Exody, Goerend, Recon,
Akzo Nobel, TransTec, some but not all are listed.

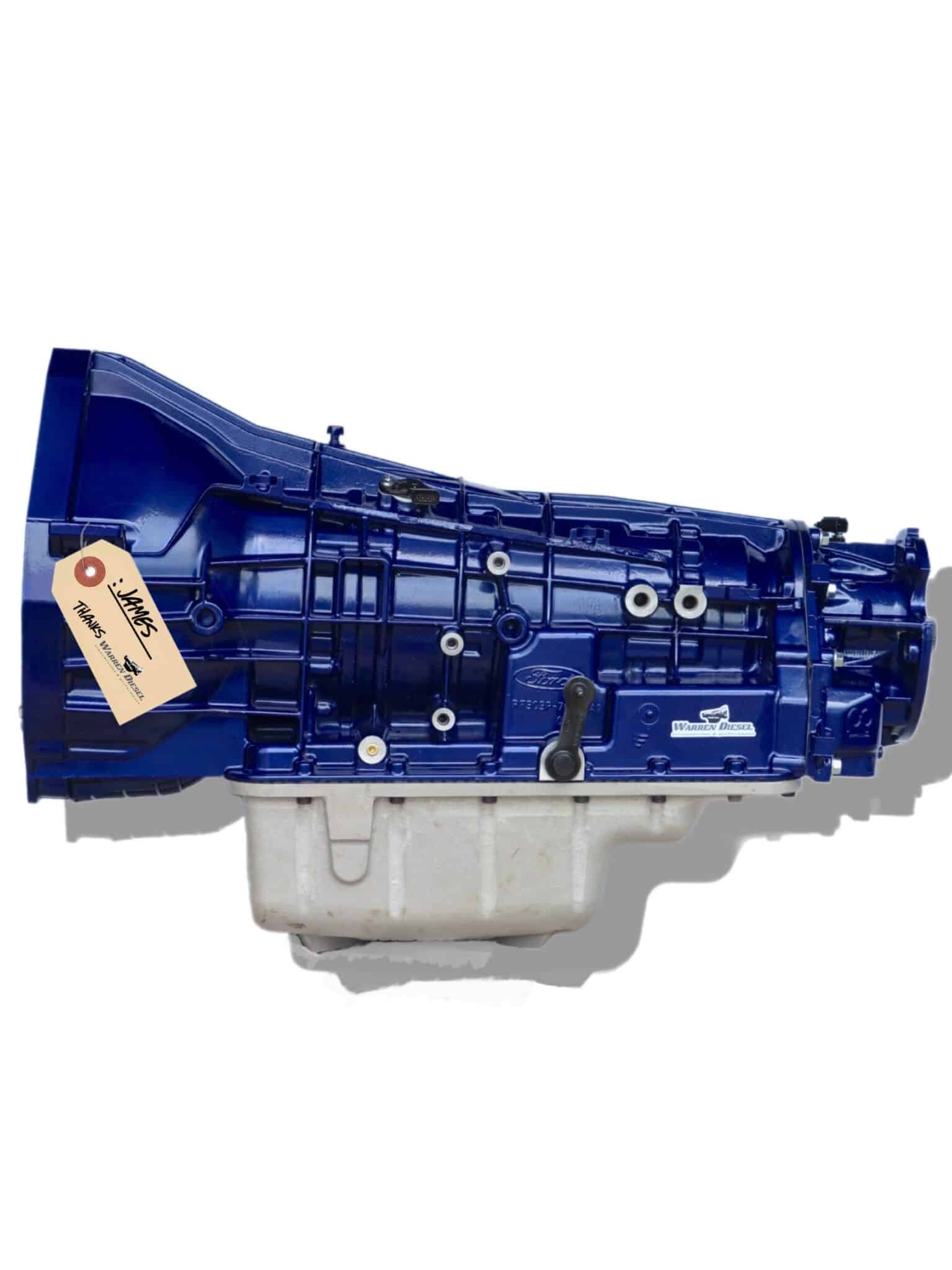

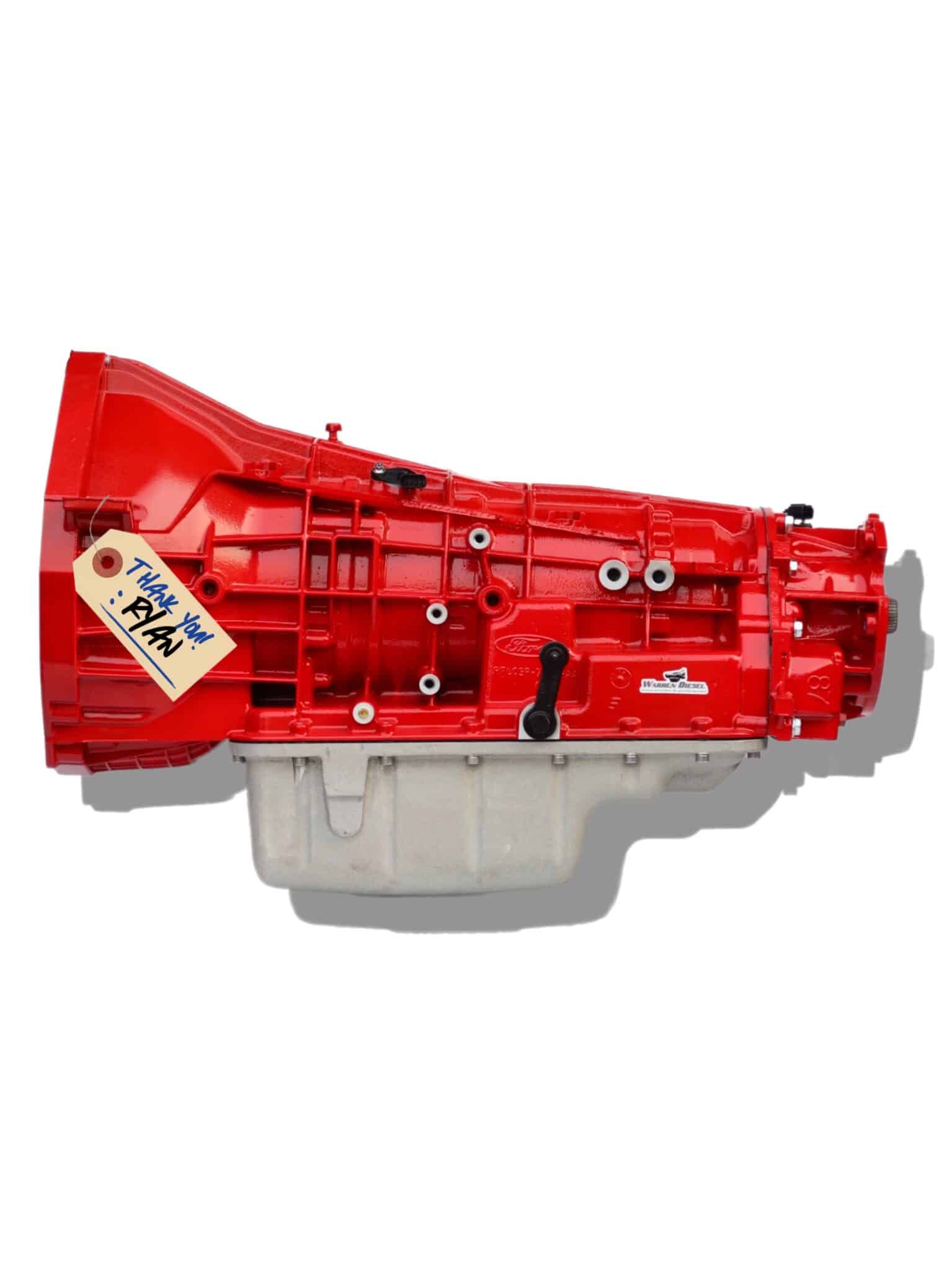

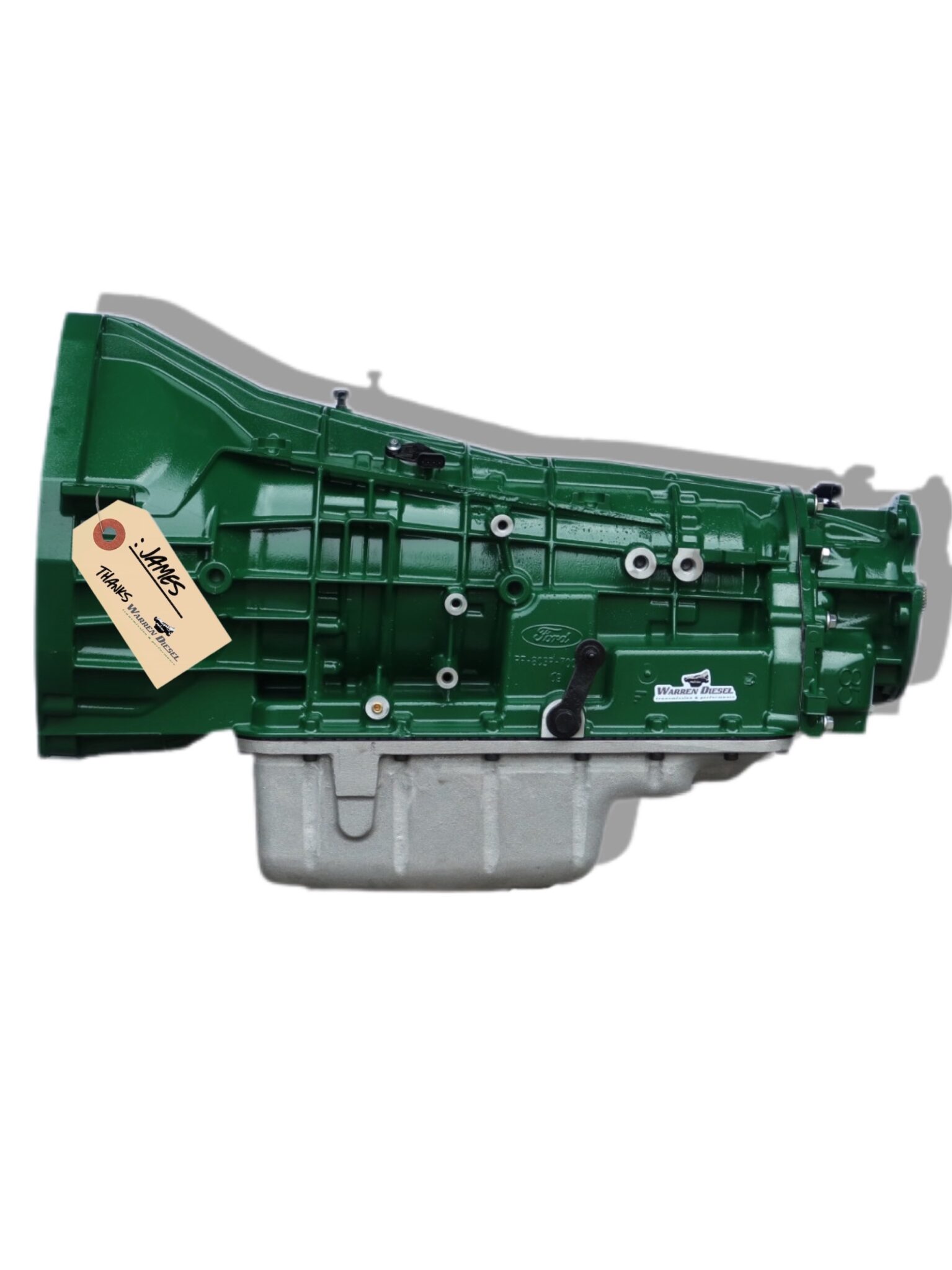

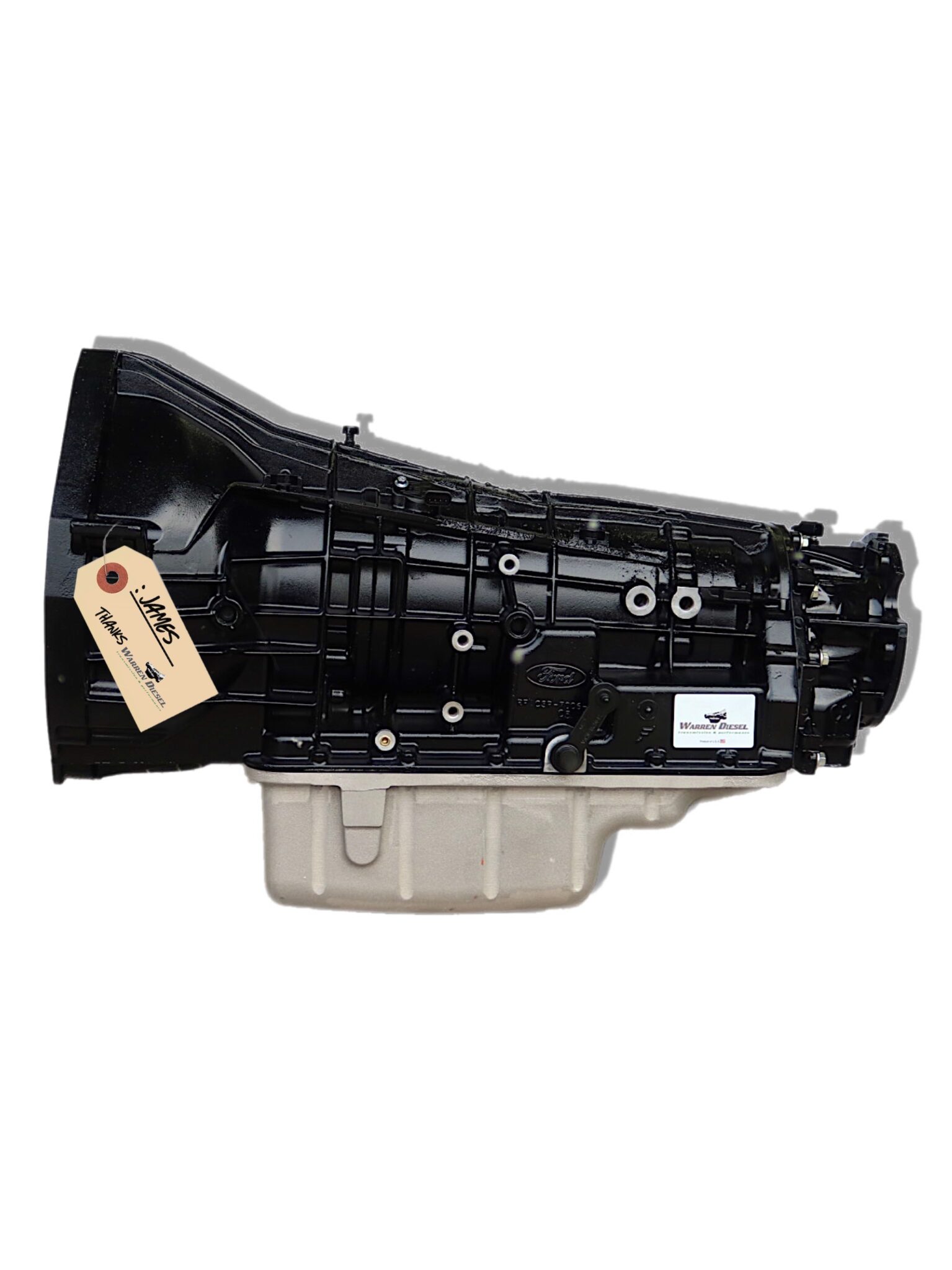

We offer special color options for our products. If you have a color that we do not already offer contact
us through e-mail or phone call, with a paint code ready and we will match that request. Our transmissions
are paint with Akzo Nobel single stage Urethane.

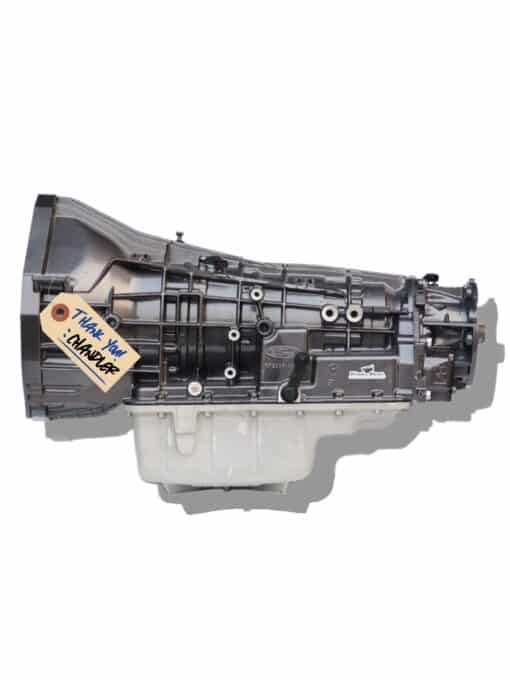

2022 Competition 5R110w Transmission
2022 Competition 5R110w. Built by hand, designed to last, endlessly custom.
Product Brand: Warren Diesel
Product In-Stock: InStock
