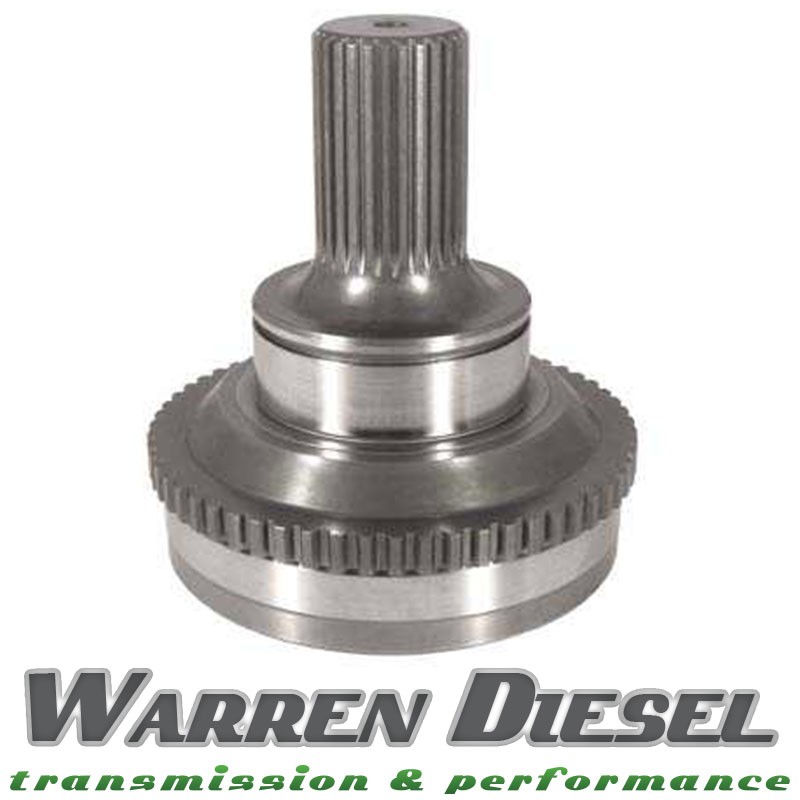

Heavy Duty 4x4 Output Shaft for A518, A618 (47RE, 48RE) Electronic Transmissions

Heavy Duty 4×4 Output Shaft (29 Spline) for A618 (47RE, 48RE) Electronic Transmissions

$775.00

Heavy duty 4X4 output shaft for Chrysler A618 (47RE and 48RE) electronic transmissions, for 29-spline input gear, made from 9310 Vacumelt high-strength billet steel

SKU: 618102 Category:

The heavy duty 4×4 output shaft for Chrysler A618 (47RE and 48RE) electronic transmissions is designed for extreme service and performance applications, made from 9310 Vacumelt high-strength billet steel. This output shaft MUST be used with a 29-spline input gear from NV 271 transfer case 05086311-AA.

Features include the following:

  • Increased shaft diameter from 1.230″ to 1.480″ for 20% additional strength
  • Made from 9310 Vacumelt high strength billet steel
  • Increased radius to further protect areas prone to stress fractures
  • Manufactured by TCS
Weight 8 lbs
Dimensions 12 × 12 × 12 in
Make

Chrysler
Series

47RE, A618, 48RE
