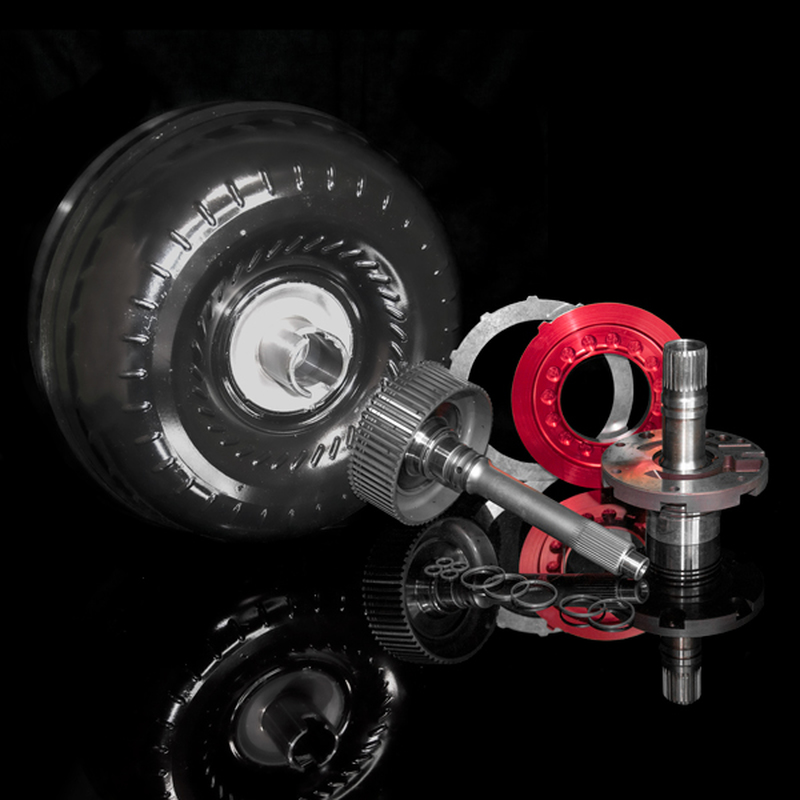

Goerend Extreme Duty Converter & Sonnax Smart-Tech Big Input Shaft Kit

The Sonnax Smart-Tech big input shaft kit is the ultimate solution to prevent input shaft spline-twist and breakage in high torque Chrysler 47RH, 47RE, and 48RE diesel applications. The kit is paired with the Goerend 47/48RE Extreme Duty Triple Disc Torque Converter, which features a matching 35 spline hub to fit with the Sonnax shaft kit. Compared to the best 300M 23-spline shafts, the Sonnax input shaft is 35% stronger at both the spline portion of the shaft and the sealing ring/cross-hole area of the shaft. The larger sealing ring and cross-hole area require a custom stator/pump cover assembly. The custom stator assembly features standard 48RE tube splines made of high-strength steel, improved retention in stator body, 48RE matched pump porting, and special rubber seals to eliminate oil leakage between the cover and pump body. This shaft comes with Goerend lube modifications.

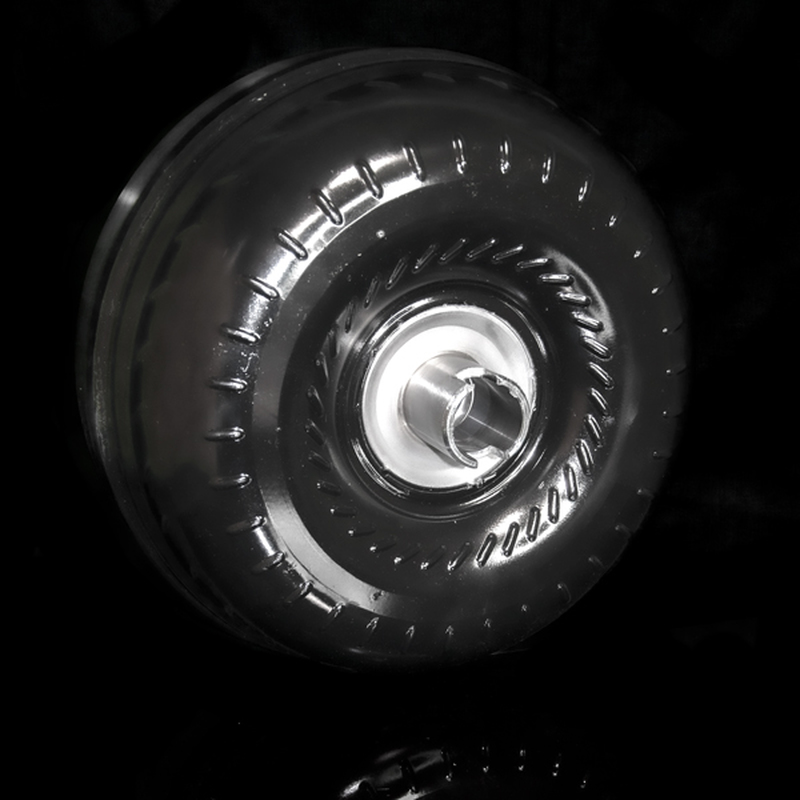

• Goerend 47/48RE Extreme Duty Triple Disc Torque Converter

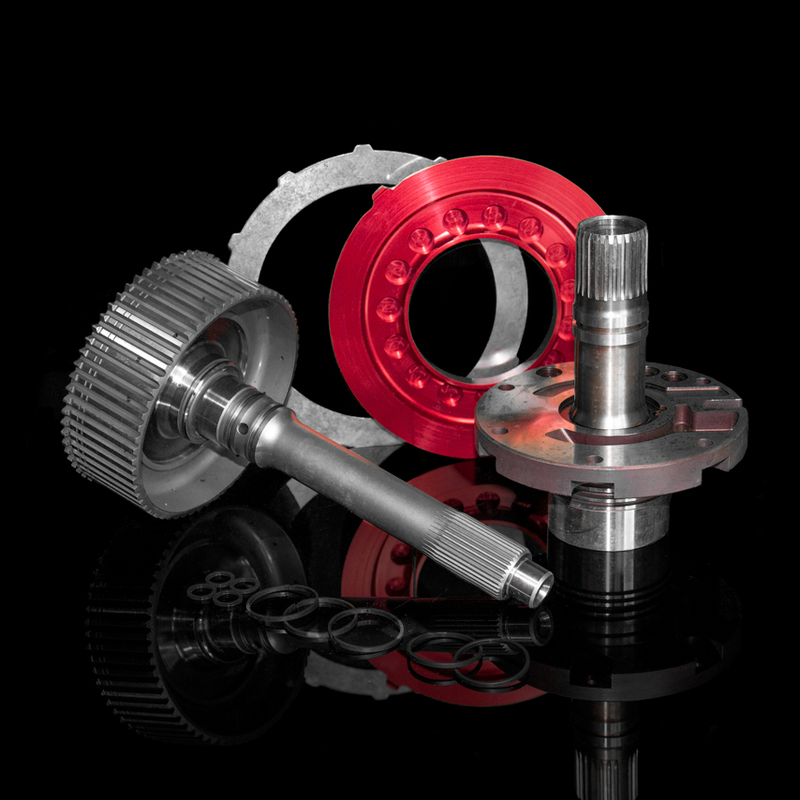

• Sonnax Smart-Tech 35 Spline Big Input Shaft with Extended Hub
• Stator Support Assembly
• Direct Clutch Piston
• .068″ Steel Clutch Plate
• Goerend Seal Rings (4)
• Quad Ring Seals (4)
• Designed & Manufactured In-House
• Tig Welded, Furnace Brazed & Silicon Bronze Reinforced Turbine
• Proprietary Alto High-Performance Multi-Disc Lockup Clutches
• K-Factor & Torque Ratio Tested On In-House Dynamometer
• Three-Year Infinite Mileage Limited Warranty
• Below 0.005 Blueprinted Runout Tolerances
• Dual Torrington Bearing Stator Design
• Multi-Bolt Pattern Billet Front Cover
• Blueprinted Internal Clearances
• Fully Pressurized & Leak Tested
• Patented Fluid Flow Deflector
• Computerized Robotic Welding
• Billet Lockup Assembly Piston
• 4140 Hardened Turbine Hub
• 4140 Flanged Impeller Hub
• Accurately Designed Pilot
• Computerized Balancing
• Lugged Stator Races
• Billet Bearing Cap
