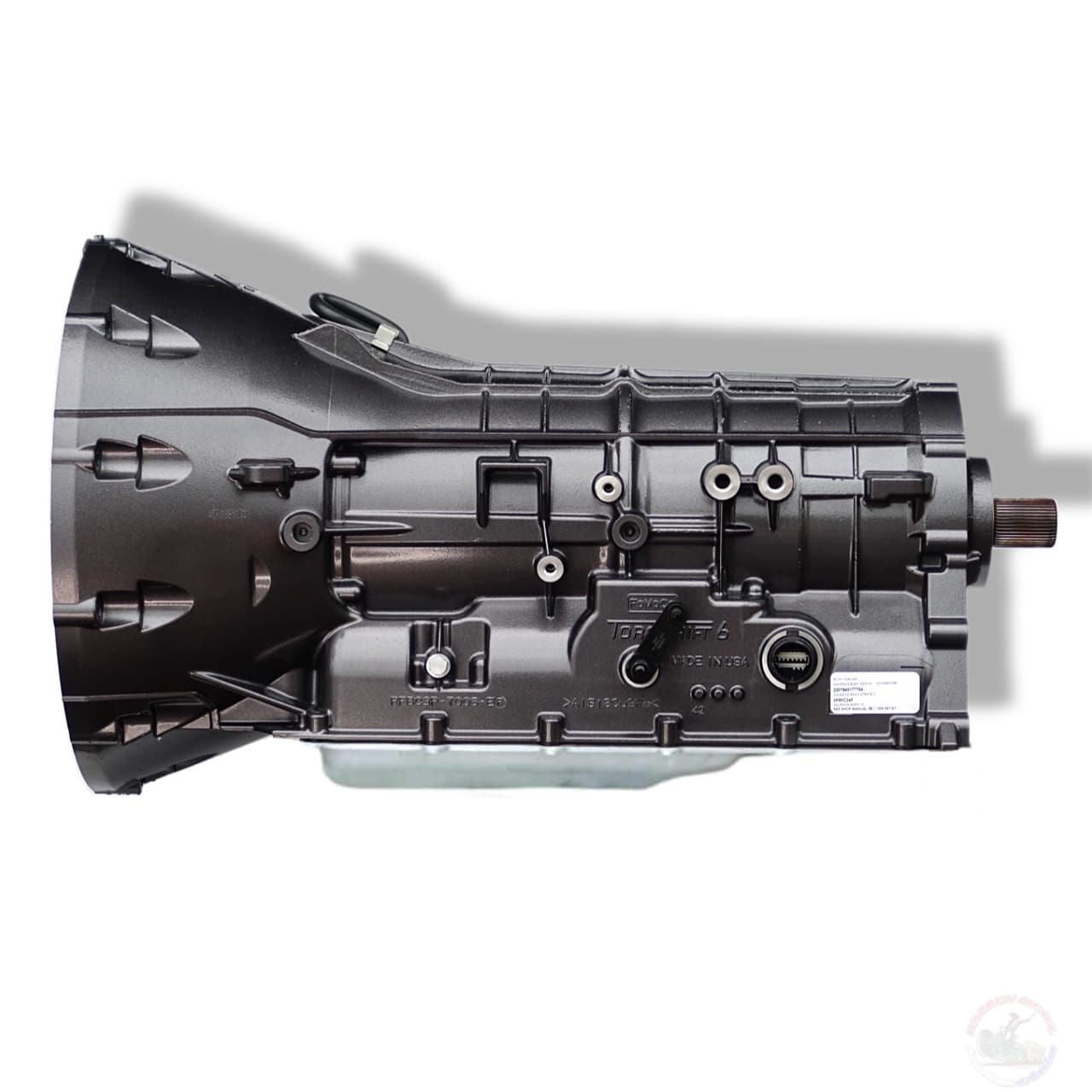

Warren Diesel 6R140 Transmission Premium OEM Replacement with Free Install

6R140 Transmission Premium OEM Replacement with Free Install

available for 2011-2019 Trucks

Free Install

At our NW Pennsylvania location, there’s NO charge for labor!

A Re-Worked Overdrive

When it comes to transmission issues, there’s one that predominantly surfaces in the 6R140 transmission. Firstly let’s take a look into the insides of the 6R140 transmission and what parts are going to take the beating.

Gears 1-4 use a various amount of Clutch Components to create different gear ratios, the main one being the Forward Clutch Assembly. Albeit the Forward Assembly is constructed of 5 large frictions with a capacity to hold nearly 40% more than factory power.

When the 6R140 transmission is in 4th gear, the large forward assembly is applied and for the first time in gears 1-4 the Overdrive assembly is utilized and will be the primary friction application for gears 4, 5, and 6. Unlike its cousins, the Overdrive assembly in the 6R140 transmission is severely handicapped in power capability.

The 6R140 Transmission overdrive components are constructed of the smallest frictions in the entire transmission and are required to hold the engines peak horsepower and torque in gears 4, 5, and 6.

The Overdrive assembly in the 6R140 Transmission has been known to flare, burn, and quit working entirely as low as *70,000 miles. Common symptoms of the Overdrive assembly failing is a shift flare (or an excessive amount of rpm) during the 3 to 4 shift.

Over the past 12 years we’ve been able to put a stop to this issue by adding a friction to the Overdrive assembly, a clutch count of 8 instead of 7. Although a seemingly minor change in construction of the Overdrive assembly our 6R140 transmission Premium OEM Replacement has been able to outlive the life of the trucks that they’re installed in.

Description

The 6R140+ Transmission, a premium OEM replacement. With a starting price of $3999 it includes the solutions to 3-4 flare, and hard down shifts with a brand new valve body, Torque converter, and reworked Overdrive clutch pack. Available with free installs at our NW Pennsylvania location, Freight shipping options, and a 36-month warranty.

Specifications

• Ford triple disc converter
• Warren Diesel valve body
• Exody Clutches
• 8-pack Overdrive/OEM 7-pack
• 6-pack Intermediate/OEM 5-pack
• 6-pack Direct/OEM 5-pack
• 5-pack Forward/OEM 5-pack
• 5-pack Low/Reverse
• Omega Machine Bushing in the pump to protect wearing and sideload from the Input drum.
• Ford Pan
• New wiring harness
• New speed sensors
• New gaskets/seals
• Omega Machine brass bushing kit.

Warranty

The 6R140 Transmission includes a 36-month warranty when the following regulations are kept:

• Stock turbo
• Stock injection system
• Tow Tune
• Not removing the torque converter
• Cooler Replaced

Warranty expiration

• 36-months

Core Return Policy

Return Core First

• Directly after purchase have your core transmission ready to pick-up.
• Once core is received at our facility we’ll ship your new transmission.

Core Charge

• Pay an $800 core charge up front and get your new transmission shipped directly to you.
• Eligible for a refund once core is returned.
