2025 Competition 5R110w (includes 3 packs of tunes)

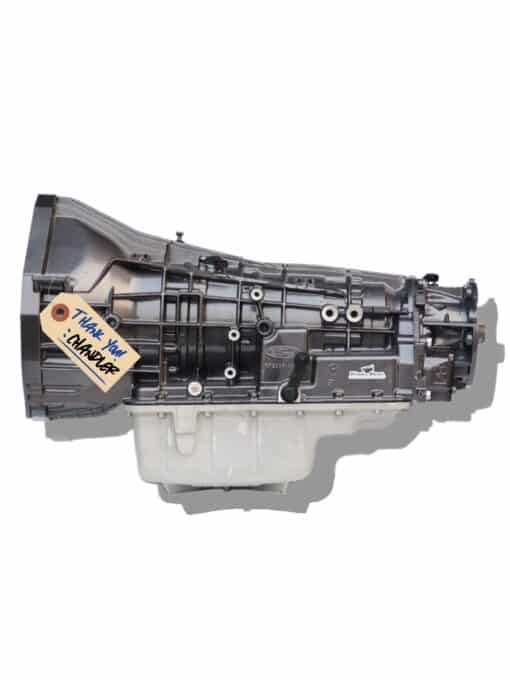

The 2025 Competition 5R110w Transmission for Ford Powerstroke 2003-2010

• 600rwhp warranty rating
• 5-year warranty
• Street
• Tow
• Daily
• One-day free install

Specifications

• Goerend triple disc billet converter with billet stator (Goerend 5R110 Triple Disc Converter)
• TCS Billet Input Shaft (5R110 Billet Input Shaft)
• Ford Billet Pump (Warren Diesel Billet Pump)
• Welded Coast Clutch Drum (Welded Coast Clutch Drum)

• Raybestos GBZ stage 1 clutches used in the following;
• 5-pack Overdrive (5-Pack Overdrive with piston (5R110w)
• 3-pack Coast Clutch
• 5-pack Intermediate
• 6-pack Xtreme Direct w/ 1-piece bushing (5R110w Xtreme Direct Drum)
• 5-pack Forward
• 6-pack Low/Reverse
• Machined center section (Machined Center Support 5R110w)
• Performance Valve Body ( Performance Valve Body 5R110w)
• Sonnax Teflon Manuel Valve (Sonnax Manuel Valve (36940-22)
• Sonnax Plug Kit (Pressure Switch O-Ringed End Plug Kit (36940-17K)
• Sonnax Retaining Ring (Sonnax Low/Reverse Retaining Ring 5R110w)
• Updated rear hub
• Akzo Noble single stage Urethane paint
• Ford valve body wiring harness (5R110w Valve Body Wiring Harness)
• Ford speed sensors
• Goerend and Ford pans available

Description

Discover hi-performance with 50% more power, 200% stronger than stock.

Warranty

This product includes a 5-year combined warranty. This includes a 1-year unlimited warranty and a 4-year labor

warranty. Warranty limitations are as the following:

• 1-year Unlimited covers cost of transmission
• 4-year Labor covers cost of labor
• Shipping is not part of the warranty
• Warranty does not cover r&r
• Warranty’s get our newest hardware installed

Tuning

Includes 3 packs of tunes. For more information, contact [email protected].

Shipping

Transmissions are shipped through freight companies. When ordering take into consideration if you

have a suitable location to unload (commercial locations are preferred.) If necessary request a lift gate.

Local Services

If you are near to our location, a local service might be more economical for you. We offer local pick-ups

and free installs with a purchase of one of our transmissions.

Core

Customers will have 30 days to return core or will be charged an $500.00 core charge. If you

select to return core simply place your core transmission on the pallet you received the new transmission

on and contact us through e-mail or phone call, and we will pick the core transmission up with a freight company.

If you select to pay the core charge simply select pay core charge on the customization bar.

Products

Our products include several manufactures including, Ford, Raybestos, Alto, Exody, Goerend, Recon,

Akzo Nobel, TransTec, some but not all are listed.

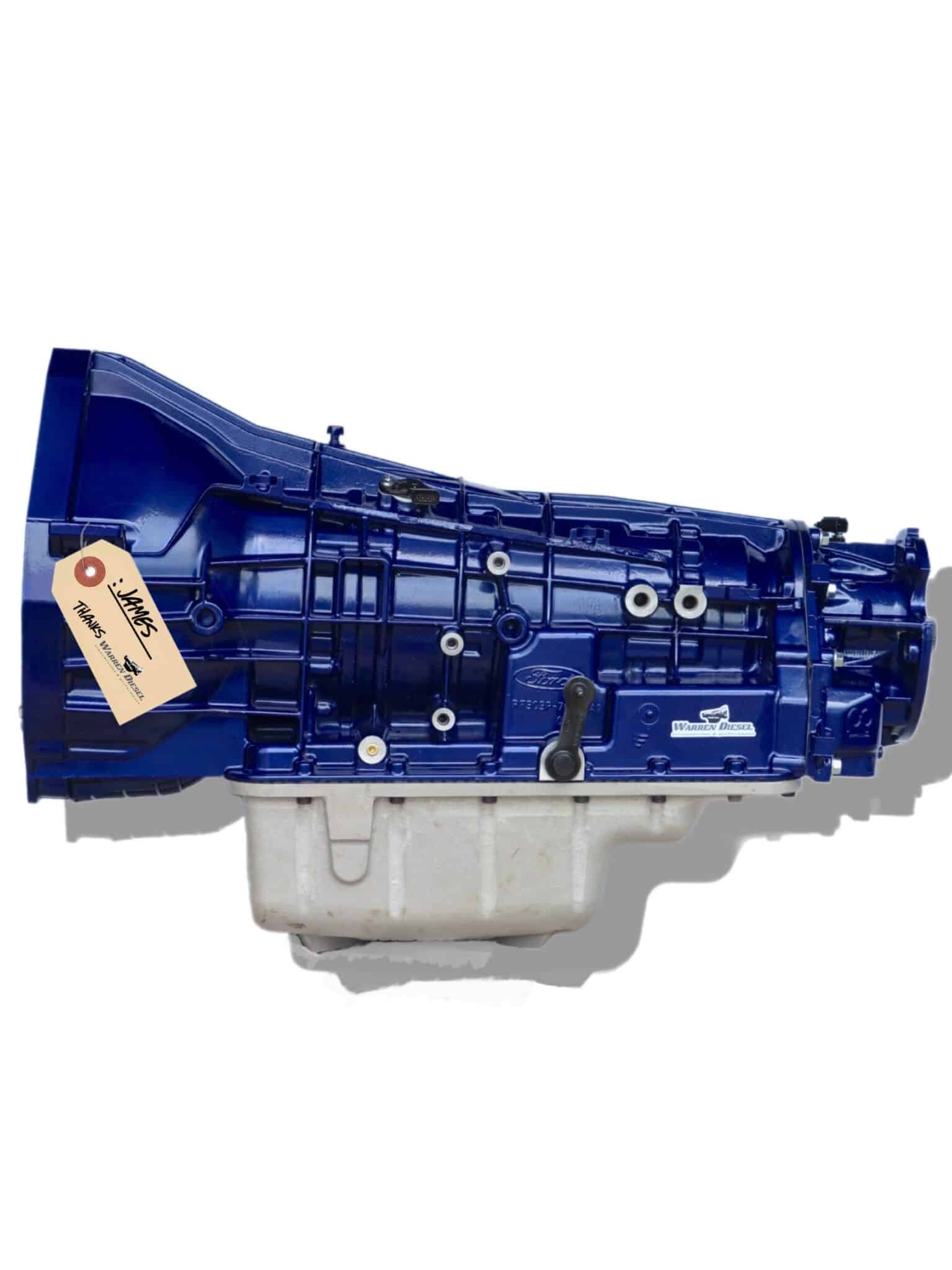

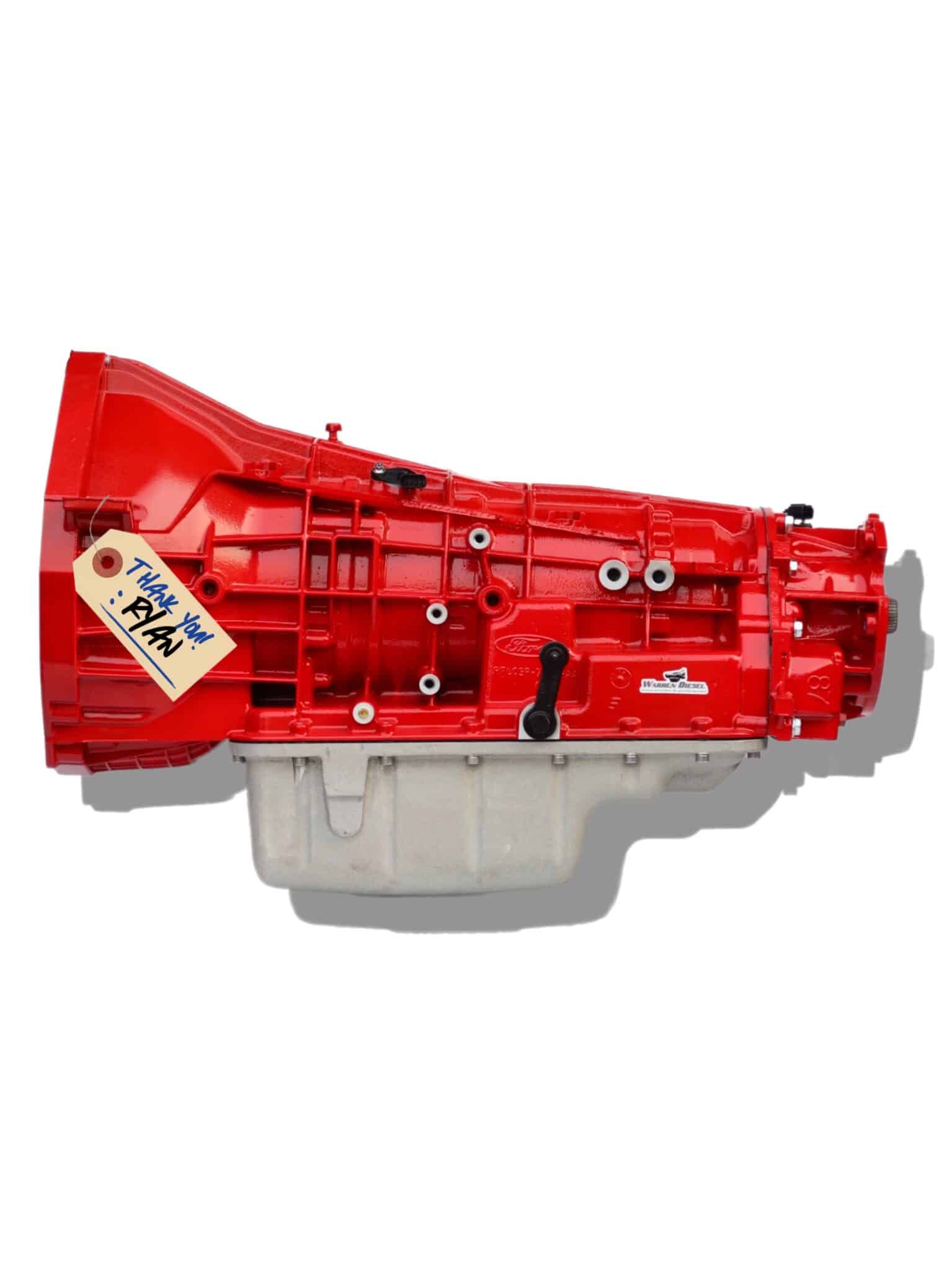

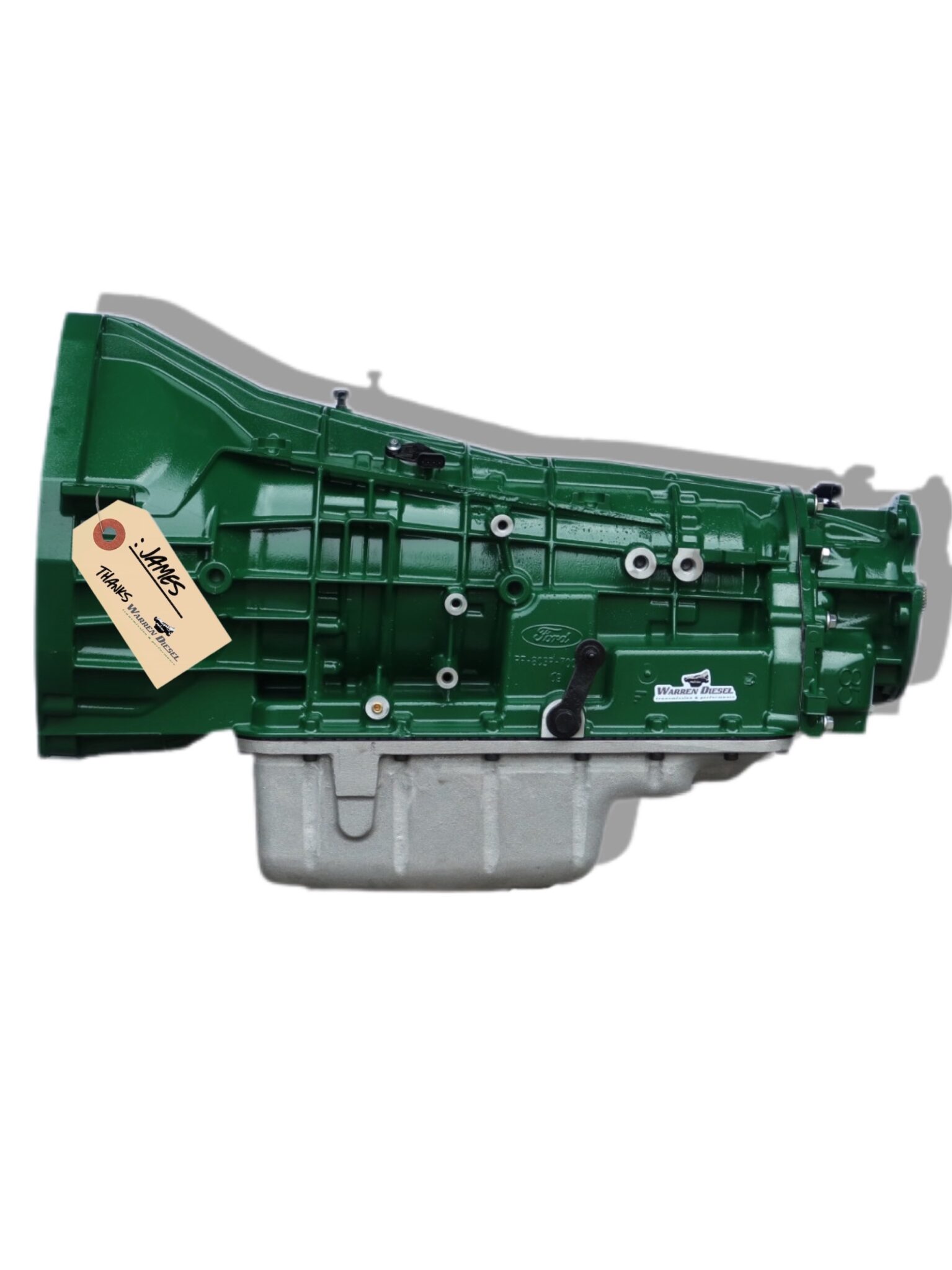

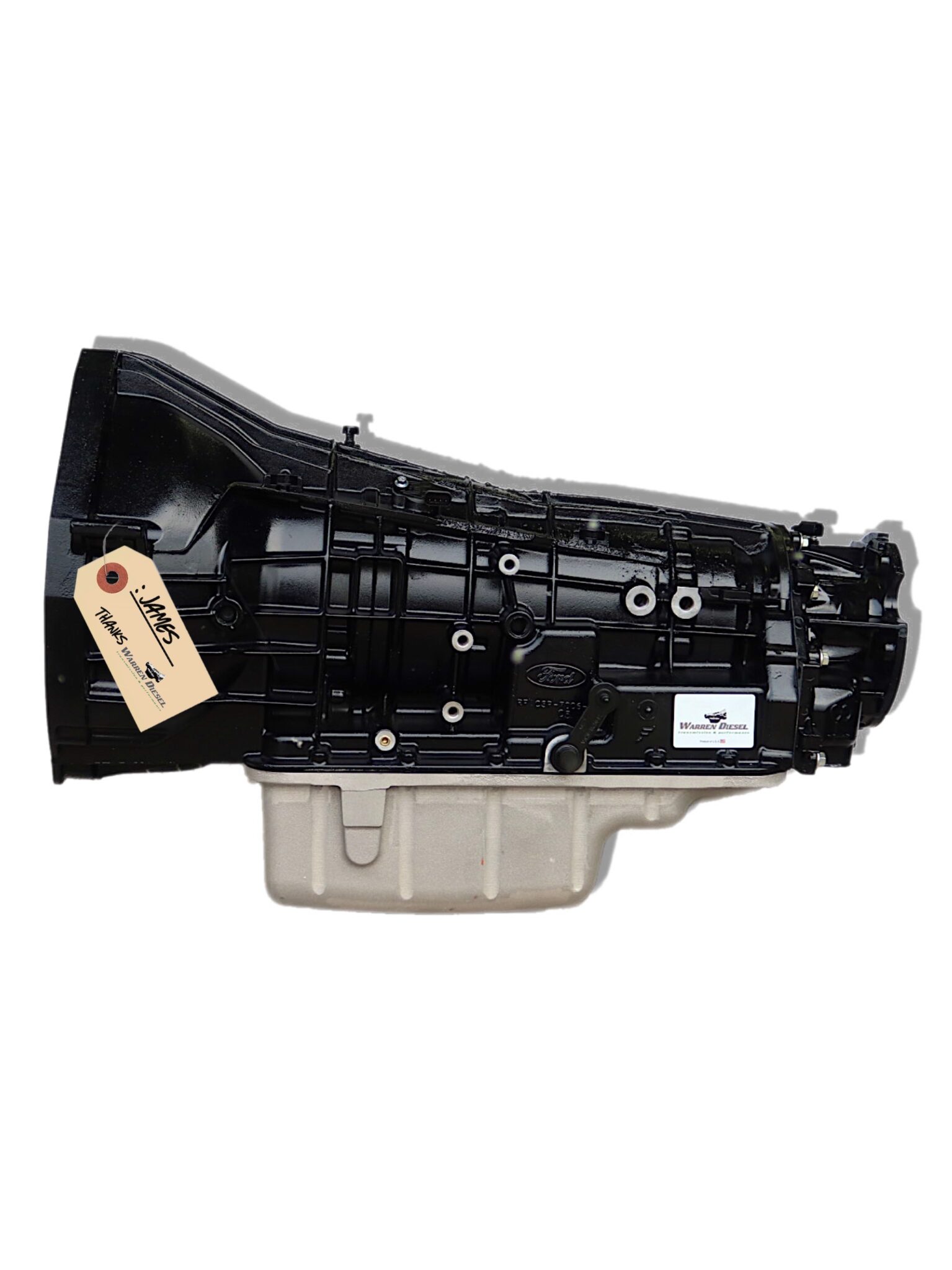

Colors

We offer special color options for our products. If you have a color that we do not already offer contact

us through e-mail or phone call, with a paint code ready and we will match that request. Our transmissions

are paint with Akzo Nobel single stage Urethane.
